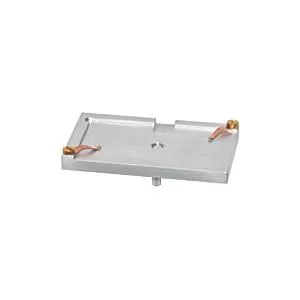

DESCRIPTION SEM Pin Mount Specimen Holders for Scanning Electron Microscopy A large selection of SEM specimen holders for SEMs, FESEMs, and FIB systems, which are using the standard 3.2mm (1/8″) pin type mount. Some of the larger holders require a larger specimen chamber and a larger stage. Depending on the available distance, Z-movement and maximum specimen height provided by the specimen stage in the SEM, pin stub extenders might be added to obtain the optimized working height. See Hitachi M4 Holders if you have a Hitachi SEM, FESEM, or FIB system. These specimen holders can also be used on JEOL SEMs if a pin mount adapter to JEOL cylinder mount is used (#15362, #15362-12, #15362-15, #16153-9, or #16216-9). Used on FEI/Philips, ZEISS, LEO, Leica, Cambridge Instruments, CamScan and Tescan SEMs This variable size geological thin section holder holds either standard petrographic slides of up to 48 x 28mm or slides from 40 x 20mm to 75 x 25mm. Two clips are provided for secure holding. Tweezers insert enables easy loading. Overall dimensions are 51 x 32 x 8mm. Standard ø3.2mm (1/8″) pin length is 9.5mm. Material: vacuum grade aluminum with copper clips and brass screws. Screw used is M2 x 3mm, Pan, Brass Variable Size Geological Thin Section Holder, 3.2mm (1/8″) Pin
