Description
Sharpened Silicon Tip; 1 Cantilever 0.2-0.8N/m; Al Reflective Coating, 10-PK DESCRIPTION
TIP SPECIFICATIONS CANTILEVER SPECIFICATIONS ScanAsyst utilizes a Bruker proprietary method for curve collection and sophisticated algorithms to continuously monitor image quality, and to automatically make appropriate parameter adjustments. This enables: Automatic image optimization for faster, more consistent results, regardless of user skill level.
Direct force control at ultra-low forces to protect delicate samples and tips from damage.

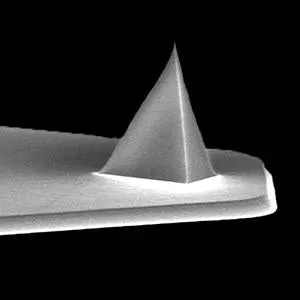

Elimination of cantilever tuning, setpoint adjustment, and gain optimization to make even fluid imaging simple. For use only on ScanAsyst-enabled Dimension Icon, MultiMode 8, and BioScope Catalyst AFMs. See the cantilever orientation diagram here. All ScanAsyst probes have <2 degrees of cantilever bend Tip Geometry:
Rotated (Symmetric) Tip Height:
2.5 – 8.0 Front Angle:
15 ± 2.5 Back Angle:
25 ± 2.5 Side Angle:
17.5 ± 2.5 Tip Radius (Nom):
2 Tip Radius (Max):
12 Tip Set Back (Nom):
5 Tip Set Back( RNG):
3 – 7 Cantilever Material:
Silicon Nitride Cantilever Thickness (Nom):
0.65 Cantilever Thickness (RNG):
0.6 – 0.7 Cantilever Geometry:
Triangular Cantilevers Number:
1 Back Side Coating:
Reflective Aluminum
