Description
ScanAsyst-Air-HPI Controlled Radius Tip, 5-Pack DESCRIPTION

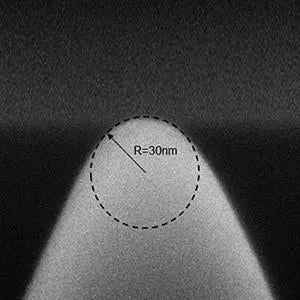

TIP SPECIFICATIONS CANTILEVER SPECIFICATIONS Building on the superior imaging performance of the ScanAsyst Air HPI probe, the ScanAsyst-Air-HPI-30 provides accurate nanomechanical mapping on very soft samples in air with controlled end radius and laser Doppler vibrometer calibrated spring constants. End radii are controlled to 30nm +/- 15%. Spring constants are individually calibrated and guaranteed within 10% . Parameters are contained in the QR code on the box for fast and error free reading with the QR reader included with Bruker’s new PeakForce QNM high accuracy kit available for Dimension Icon. The low nominal 0.25N/m spring constant is most suitable for extremely soft polymer samples (typically kPa to MPa range). For stiffer samples, see the whole series of calibrated probes. – Nanomechanical mapping with FFV or PFQNM on Dimension Icon – Controlled 30nm end radius – Individually calibrated spring constant, 0.25N/m nominal – Parameters contained in QR code – One pack of 5 probes Tip Geometry:
Rotated Tip Height:
3 – 8 Front Angle:
15 Back Angle:
1 – 24 Tip Radius (Nom):
30 Tip Radius (Max):
36 Tip Set Back (Nom):
3 Tip Set Back( RNG):
0-5 Cantilever Material:
Silicon Nitride Cantilever Thickness (Nom):
0.58 Cantilever Thickness (RNG):
0.53-0.63 Cantilever Geometry:
Special Cantilevers Number:
1 Back Side Coating:
Reflective Al
