Brand 14.1CFM Two Stage Pro Series

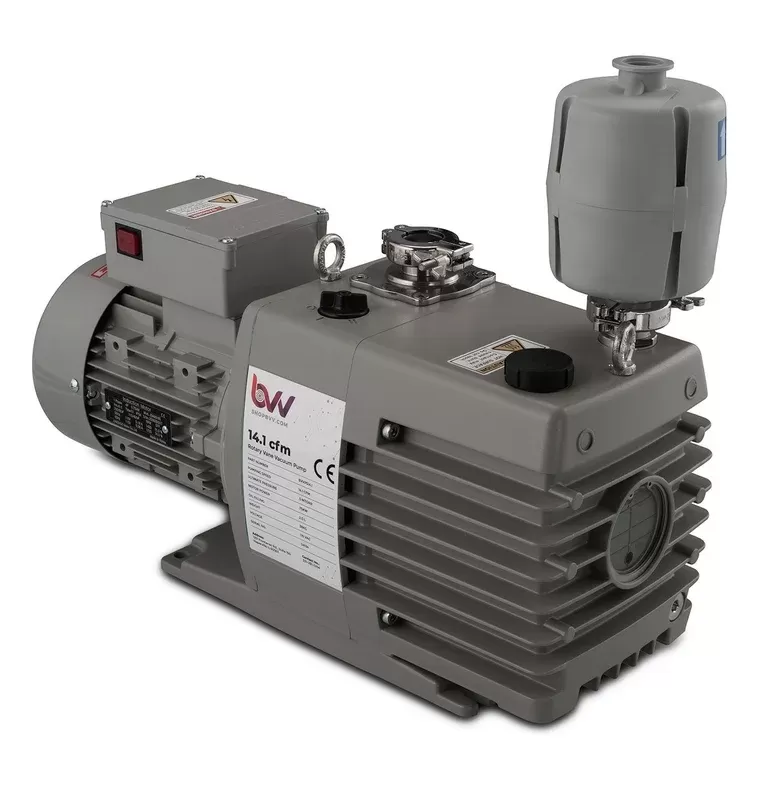

This is the BVV™ Brand 14.1CFM Two Stage Pro Series vacuum pump. The BVV™ Pro Series 14.1CFM will pull a vacuum down to 0.5 micron effortlessly. The pump is designed withcorrosionresistance and long term continuous operation in mind. Comes standard with K-25 fittings, clamps, centering rings and oil mist exhaust filter which returns trapped oil back to the pump and allows for quieter operation. Adjustable gas ballast keeps moisture, solvent, and other contaminants from getting stuck in the pump.Compare to Cacejen or Xeno brand rotary vane vacuum pumps.Please Refer to these charts for vacuum specifications at altitude and conversions: Vacuum at Altitude Chart
Vacuum Conversion Chart Specifications Electrical Requirements:
115v 60Hz Pumping Rate:
14.1CFM Ultimate vacuum without gas ballast:
0.5 micron Inlet/Outlet connection:
KF25/NW25 Flange Oil Volume:
2L/2.1 quarts Motor Rate:
1720 RPM Working Temperature:
5C to 40C Unit Weight:
38KG / 84lbs Recommended oil:
Ultragrade 19 CE Compliance:
Yes Warranty
2 year limited warranty Pump Warranty Information Customers using solvents such as stabilization resins (MinWax™, Gator Venom™ etc.), alcohol and other polar solvents must use the vacuum pumps in conjunction with a cold trap for evacuations in excess of 5 minutes. (Excludes Cactus Juice™)
If the consumer is using the pump for prolonged periods of time exceeding 5 minutes we require that a cold trap is used or the pump warranty is void.
These stabilization resins have the ability to break down the internal components of the pump that are plastic resulting in a seized motor voiding all warranties.
When evacuation exceeds 5 minutes these solvents begin to vaporize and then re-condense in the vacuum pump reservoir. Once enough solvent re-condenses in the pump displacing the oil the plastic internal components may begin to warp, melt or seize. The use of a cold trap will condense the vapors prior to making their way to the vacuum pump preventing pump damage due to excessive use. Furthermore, Minwax Wood Hardener™ is not to be used with any vacuum pumps, EVER. (A seized motor will result within the first use.)
To prevent these issues from happening to your process, change the Oil after each vacuum pump use, Even if the use time is only 5min.
