Diamond Tip, 150 – 300 N/m, 35 – 65 kHz DESCRIPTION
TIP SPECIFICATIONS
CANTILEVER SPECIFICATIONS Hand-crafted natural diamond Nanoindenting tip. Unmounted for all AFMs.
Quantity=1

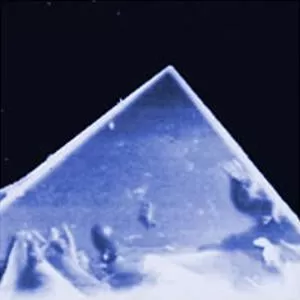

Specific spring constant range can be requested as a special order for added cost. Contact us for more information. The DNISP is a hand-crafted high force cantilever for nanoindenting/nanoscratching applications. The tip is designed to be ultra high strength and is fabricated by precision grinding of a solid diamond. These tips are not for use in general imaging. The diamond tip apex is the corner of a cube so that three right angle planes form the apex “A”. To provide more symmetric dents, the diamond is mounted with the vertical axis of the tip approximately normal to the sample when mounted on the microscope. The nanoindenting probe is designed for use in air and is not recommended for liquid operation due to contamination & solvent incompatibility issues. Tip Geometry:
Rotated (Symmetric) Tip Height:
50 Front Angle:
55 ± 2 Back Angle:
35 ± 2 Side Angle:
51 ± 2 Tip Radius (Nom):
40 Tip Radius (Max):
50 Tip Set Back (Nom):
13 Tip Set Back( RNG):
5 – 20 Each cantilever individually qualified and is supplied with a calibration certificate. These probes can be repaired – contact Bruker AFM Probes. Cantilever Material:
Stainless Steel Cantilever Thickness (Nom):
13 Cantilever Thickness (RNG):
11 – 15 Cantilever Geometry:
Rectangular Cantilevers Number:
11 – 31
