Description

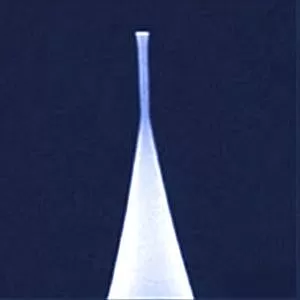

Round Re-Entrant Tips for 3-D imaging Max W = 140 nm, Max OH = 30 nm, Max EL = 500 nm DESCRIPTION
TIP SPECIFICATIONS CANTILEVER SPECIFICATIONS Round Re-Entrant Tips for 3-D imaging Max Width = 140 nm Max Overhang = 30 nm Max Effective Length = 500 nm Tip Geometry:
Critical Dimension (Overhang) Tip Height:
10 – 20 Tip Set Back( RNG):
5 – 15 Tilt Compensation:
cell2 The Aluminum reflective coating on the backside of the cantilever increases the laser signal (A+B) by up to 2.5 times. It is to assist the machine vision application on Automated AFMs. Cantilever Material:
0.010 – 0.025 Ωcm Silicon Cantilever Thickness (Nom):
3.3 Cantilever Thickness (RNG):
2.8 – 3.8 Cantilever Geometry:
Rectangular Cantilevers Number:
1 Back Side Coating:
Reflective Aluminum
