Description

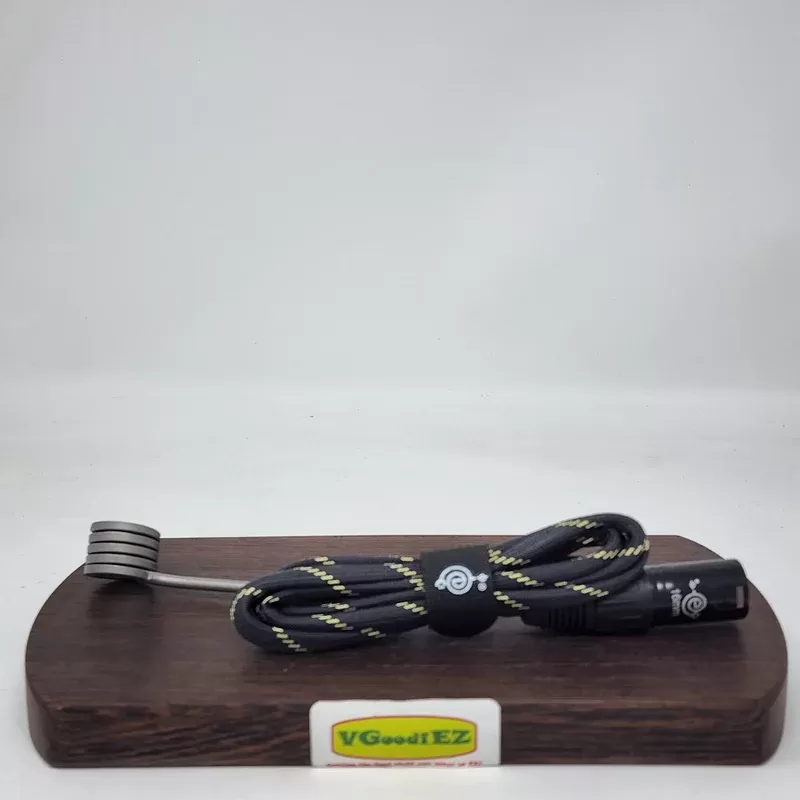

This is the whip and heating coil for use with all models of the PeliNail electric nail.The heater coils feature a 5-foot long Kevlar encased cord, various coil sizes, and a standard 5-pin XLR connector. Features: 5-pin XLR connector Length: 5 ft. Kevlar sheathed cord Resistance Material: Ni80Cr20 from Germany One-Year Warranty on Coil through Disorderly Conduction 120V 100W Also compatible with analog and digital D-Nail units, EzBake Enail, ShatterBox Enail and some other 5-pin XLR units(Please double check how your XLR port is wired with the diagram below) DC 25mm Kevlar Coil is compatible with XL Toro Grail, Highly Educated The Gavel , XL Eternal Quartz, XL Ionic Quartz, Joel Halen Flat Tops *WARNING* WHEN USING ANY SIZE COIL WITH QUARTZ PLEASE TAKECOIL OFF THE NAIL BEFORE THE NAIL COOLS TO AVOID CHANCE OF DAMAGING YOUR QUARTZ **DC KEVLAR COILS DO NOT WORK WITH: HIGH5VAPE PRODUCTS, CASA COIL or DABBERBOX** Diagram for how XLR is wired on DC Coils Pin1, Pin2 are power for coil; Pin3, TC+; Pin4, TC-; Pin5, Ground; This Information can be used for someone looking to use the DC Kevlar Coil with a DIY XLR port they or someone else built, but cannot be guaranteed on non-PeliNail products.If the XLR port is not wired the same way as above the Coil will not heat up and might cause damage to unit or coil.
